Type W-C Rotary Joints
Type W-C Rotary Joint has unique configuration and special seal technology, so it could provide long continuous operation even when it has severe applications.
Features

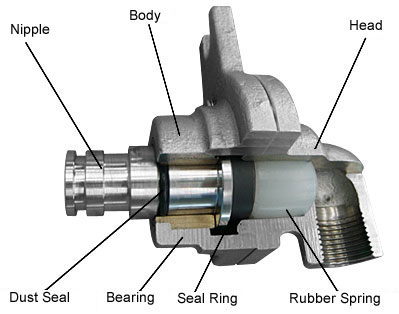

- Easy repair and no need for specialized knowledge for maintenance because of a few components and simple configuration
- Enough pressure provided by unique Rubber Spring
- Stainless Steel and Special Rubber prevent main welded area from corrosion.
- Easy repair provided by single flat seal structure
- Special Carbon Graphite Seal Ring developed through study for years could eliminate corrosion.
- Grinding and precision machine are not required for rotary joint repairs.
- Rotary joint could be designed based on the dimensions of the existing roll.
- Long operating life could substantially reduce maintenance cost.
Specifications
 |
Pressure | Temperature | Speed | Fluid |
|---|---|---|---|---|
| 1.0MPa | 100°C | 20rpm | Water |
Single Flow (External mounted)
Unit:mm
| Type | Size(K) | M | A | B | C | D | F | J | L |
|---|---|---|---|---|---|---|---|---|---|
| 3100W-CAQ | 1/2" | 1/2" | 22 | 32 | 70 | 93 | 12 | 108 | 12 |
| 3200W-CA2Q | 3/4" | 3/4" | 28 | 46 | 100 | 104 | 14 | 121 | 17 |
| 3300W-CA2Q | 1" | 1" | 34 | 52 | 150 | 112 | 14 | 133 | 17 |
*Dimensions are subject to change without any advanced notice.
Dual Flow (External mounted)
Unit:mm
| Type | Size(K) | M | P | S | A | B1 | B2 | C | D | F | H | J | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3400W-CDQ | 1 1/4" | 1" | 1" | 1/2" | 40 | 31 | 39 | 120 | 152 | 18 | 207 | 230 | 23 |
| 3500W-CDQ | 1 1/2" | 1" | 1" | 3/4" | 50 | 34 | 42 | 130 | 170 | 18 | 210 | 245 | 18 |
| 3550W-CDQ | 2" | 1" | 1" | 1" | 60 | 38 | 51 | 165 | 154 | 18 | 202 | 230 | 13 |
*Dimensions are subject to change without any advanced notice.
Single Flow (Internal mounted)
Unit:mm
| Type | Size(K) | M | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|
| 3200W-CAJI | 3/4" | 3/4" | 41 | 75 | 46 | 58 | 45 | 56 | 12 |
| 3300W-CAJI | 1" | 1" | 51 | 55 | 60 | 71 | 50 | 80 | - |
*Dimensions are subject to change without any advanced notice.
Dual Flow (Internal mounted)
Unit:mm
| Type | Size(K) | M | P | S | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|---|---|
| 3200W-CDJI | 3/4" | 3/4" | 3/4" | 17 | 58 | 50 | 50 | 76 | 35 | 79 |
| 3300W-CDJI | 1" | 3/4" | 3/4" | 19 | 59 | 50 | 60 | 76 | 35 | 80 |
| 3400W-CDJI | 1 1/4" | 3/4" | 3/4" | 1/2" | 65 | 60 | 65 | 85 | 35 | 106 |
| 3500W-CDJI | 1 1/2" | 1" | 1" | 3/4" | 60 | 64 | 71 | 90 | 45 | 110 |
*Dimensions are subject to change without any advanced notice.
