SX™ Rotary Joints

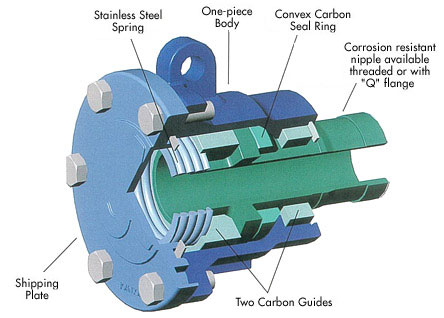

The self-supported SX rotary joint provides a positive seal between stationary piping and a rotating cylinder and is applied to steam, water, and hot oil service. The SX incorporates two internal carbon-graphite bearings that permit self-alignment and long operating life – even on cylinders that are not concentric. Using new sealing technologies, the SX rotary joint has extended seal life and increased reliability along with application flexibility.
The convex seal ring and optimized seal diameter provide extended seal life and reduced maintenance for the SX rotary joint. The concept of applying different seal geometries to different media (steam, water, and oil) gives the SX rotary joint a strong point of differentiation as well as a marked improvement in performance.
The SX rotary joint line is available in sizes from ¾” to 3” and can be used in single- or dual-flow applications. The joint is rated up to 650° F (343° C), 300 psig (20 bar), and 550 RPM.
Features
- Designed for oil, water, and steam
- Two internal support guides
- Optimized seal diameter
- Convex seal ring in compression
- Maximum carbon guide separation
Benefits
- Application flexibility
- Increased life and reliability
- Extended seal life, reduced maintenance
- Self-aligning seal, longer life
- Improved joint and syphon support
Single Flow Rotary Joint
| Fluid | Usual Pressure | Max. Pressure | Max. Temperature | Max. Speed |
| Steam/Water | 2MPa | 3.5MPa | 288°C | 550rpm |
| Hot Oil | 1MPa | 1MPa | 343°C | 550rpm |
Type: SXA(Q)
Unit:mm
| Type | Size(K) | M | C | F | G | J | O |
|---|
| 3200SXA(Q) | 3/4" | 3/4" | 94 | 51 | 111 | 184 | 11 |
|---|
| 3300SXA(Q) | 1" | 1" | 105 | 46 | 122 | 195 | 11 |
|---|
| 3400SXA(Q) | 1 1/4" | 1 1/4" | 133 | 51 | 151 | 232 | 14 |
|---|
| 3500SXA(Q) | 1 1/2" | 1 1/2" | 167 | 56 | 178 | 267 | 18 |
|---|
| 3550SXA(Q) | 2" | 2" | 176 | 57 | 204 | 302 | 22 |
|---|
| 3600SXA(Q) | 2 1/2" | 2 1/2" | 198 | 67 | 215 | 320 | 22 |
|---|
| 3700SXA(Q) | 3" | 3" | 219 | 76 | 248 | 389 | 28 |
|---|
Available threaded (NPT, BSPT, BSP) or "Q" Quick Release Nipple
*Dimensions are subject to change without any advanced notice.
Type: SXC(Q)
Unit:mm
| Type | Size(K) | M | C | F | G | J | O |
|---|
| 3200SXC(Q) | 3/4" | 3/4" | 94 | 51 | 81 | 176 | 11 |
|---|
| 3300SXC(Q) | 1" | 1" | 105 | 46 | 84 | 160 | 11 |
|---|
| 3400SXC(Q) | 1 1/4" | 1 1/4" | 133 | 51 | 99 | 194 | 14 |
|---|
| 3500SXC(Q) | 1 1/2" | 1 1/2" | 167 | 56 | 121 | 219 | 18 |
|---|
| 3550SXC(Q) | 2" | 2" | 176 | 57 | 130 | 224 | 22 |
|---|
| 3600SXC(Q) | 2 1/2" | 2 1/2" | 198 | 67 | 138 | 251 | 22 |
|---|
| 3700SXC(Q) | 3" | 3" | 219 | 76 | 160 | 279 | 28 |
|---|
*Available threaded (NPT,BSPT,BSP) or "Q" Quick Release Nipple
*Dimensions are subject to change without any advanced notice.
Dual Flow Rotary Joint
| Fluid | Usual Pressure | Max. Pressure | Max. Temperature | Max. Speed |
| Steam/Water | 2MPa | 3.5MPa | 288°C | 550rpm |
| Hot Oil | 1MPa | 1MPa | 343°C | 550rpm |
Type: SXB(Q)
Unit:mm
| Type | Size(K) | M | P | S | C | D | E | F | G | H | J | O |
|---|
| 3200SXB(Q) | 3/4" | 1/2" | 1/2" | 1/8" - 1/4" | 94 | 19 | 33 | 51 | 116 | 152 | 200 | 11 |
|---|
| 3300SXB(Q) | 1" | 3/4" | 1/2" | 1/4" - 3/8" | 105 | 28 | 35 | 46 | 127 | 171 | 227 | 11 |
|---|
| 3400SXB(Q) | 1 1/4" | 1" | 1/2" | 3/8" - 1/2" | 133 | 35 | 46 | 51 | 165 | 197 | 265 | 14 |
|---|
| 3500SXB(Q) | 1 1/2" | 1 1/4" | 3/4" | 1/2" - 3/4" | 167 | 37 | 44 | 56 | 181 | 226 | 279 | 18 |
|---|
| 3550SXB(Q) | 2" | 1 1/2" | 3/4" | 1/2" - 3/4" | 176 | 38 | 48 | 57 | 197 | 241 | 312 | 22 |
|---|
| 3600SXB(Q) | 2 1/2" | 2" | 1" | 3/4" - 1" | 198 | 38 | 52 | 67 | 210 | 262 | 345 | 22 |
|---|
| 3700SXB(Q) | 3" | 2" - 2 1/2" | 1 1/4" - 1 1/2" | 3/4" - 1 1/2" | 219 | 73 | 90 | 76 | 265 | 305 | 423 | 28 |
|---|
*Available threaded (NPT, BSPT, BSP) or "Q"" Quick Release Nipple
*Dimensions are subject to change without any advanced notice.
Type: SXBP(Q)・SXBP(Q)-1
(SXBP(Q)-1 has the split wedge and pressure plate device for reduced syphon pipe breakage.)
Unit:mm
| Type | Size(K) | M | P | S | C | D | E | F | G | H | J | O |
|---|
| 3300SXBP(Q) | 1" | 3/4" | 1/2" | 1/4" - 3/8" | 105 | 28 | 35 | 46 | 147 | 178 | 247 | 11 |
|---|
| 3400SXBP(Q) | 1 1/4" | 1" | 1/2" | 3/8" - 1/2" | 133 | 35 | 46 | 51 | 181 | 206 | 282 | 14 |
|---|
| 3500SXBP(Q) | 1 1/2" | 1 1/4" | 3/4" | 1/2" - 3/4" | 167 | 37 | 44 | 56 | 198 | 241 | 298 | 18 |
|---|
| 3550SXBP(Q) | 2" | 1 1/2" | 3/4" | 1/2" - 3/4" | 176 | 38 | 48 | 57 | 214 | 257 | 329 | 22 |
|---|
| 3600SXBP(Q) | 2 1/2" | 2" | 1" | 3/4" - 1" | 198 | 38 | 52 | 67 | 226 | 279 | 363 | 22 |
|---|
| 3700SXBP(Q) | 3" | 2" - 2 1/2" | 1 1/4" - 1 1/2" | 3/4" - 1 1/2" | 219 | 73 | 90 | 76 | 280 | 322 | 439 | 28 |
|---|
*Available threaded (NPT, BSPT, BSP) or "Q" Quick Release Nipple
*Dimensions are subject to change without any advanced notice.
Type: SXB2(Q)
Unit:mm
| Type | Size(K) | M | P | S | C | D | E | F | G | H | J | O |
|---|
| 3200SXB2(Q) | 3/4" | 1/2" | 3/8" | 1/8" | 94 | 24 | 33 | 51 | 116 | 157 | 189 | 11 |
|---|
| 3300SXB2(Q) | 1" | 3/4" | 1/2" | 1/4" - 3/8" | 105 | 27 | 35 | 46 | 125 | 162 | 195 | 11 |
|---|
| 3400SXB2(Q) | 1 1/4" | 1" | 1/2" | 3/8" | 133 | - | 40 | 51 | 165 | 214 | 234 | 14 |
|---|
*Available threaded (NPT, BSPT, BSP) or "Q" Quick Release Nipple
*Dimensions are subject to change without any advanced notice.
Type: SXD(Q)
Unit:mm
| Type | Size(K) | M | P | S | C | D | E | F | G | H | J | O |
|---|
| 3500SXD(Q) | 1 1/2" | 1 1/4" | 3/4" | 1/2" - 3/4" | 167 | 174 | 44 | 56 | 57 | 281 | 322 | 18 |
|---|
| 3550SXD(Q) | 2" | 1 1/2" | 3/4" | 1/2" - 3/4" | 176 | 188 | 48 | 57 | 60 | 285 | 336 | 22 |
|---|
| 3600SXD(Q) | 2 1/2" | 2" | 1" | 3/4" | 198 | 209 | 52 | 67 | 61 | 335 | 383 | 22 |
|---|
| 3700SXD(Q) | 3" | 2 1/2" | 1 1/4" - 1 1/2" | 1" - 1 1/2" | 219 | 241 | 60 | 76 | 89 | 376 | 442 | 28 |
|---|
*Available threaded (NPT, BSPT, BSP) or "Q" Quick Release Nipple
*Dimensions are subject to change without any advanced notice.
Type: SXDP(Q)
Unit:mm
| Type | Size(K) | M | P | S | C | D | E | F | G | H | J | O |
|---|
| 3500SXDP(Q) | 1 1/2" | 1 1/4" | 3/4" | 1/2" - 3/4" | 167 | 198 | 44 | 56 | 57 | 300 | 339 | 18 |
|---|
| 3550SXDP(Q) | 2" | 1 1/2" | 3/4" | 1/2" - 3/4" | 176 | 205 | 48 | 57 | 60 | 302 | 353 | 22 |
|---|
| 3600SXDP(Q) | 2 1/2" | 2" | 1" | 3/4" | 198 | 224 | 52 | 68 | 61 | 338 | 383 | 22 |
|---|
| 3700SXDP(Q) | 3" | 2 1/2" | 1 1/4" - 1 1/2" | 1" - 1 1/2" | 219 | 258 | 60 | 76 | 89 | 392 | 459 | 28 |
|---|
*Dimensions are subject to change without any advanced notice.
SX Rotary Joint Cartridge
The SX cartridge is an economical and easy upgrade for users of Type S rotary joints. The cartridge includes all of the features and benefits of the SX rotary joint, less the head. Because you are able to re-use your existing head, flexible hoses, and syphon equipment, the SX cartridge requires no piping modifications and offers extended seal life, reduced maintenance, and improved joint and syphon support. The SX cartridge is available in sizes from ¾” to 3”.
Features
- Same connection locations as type S Joint
- Fits existing type S Joint heads
- Two internal support guides
- Optimized seal diameter
- Convex seal ring in compression
- Maximum carbon guide separation
Benefits
- No piping modifications, easy upgrade
- Low cost upgrade
- Increased life and reliability
- Extended seal life, reduced maintenance
- Self-aligning seal, longer life
- Improved joint and syphon support
