Type S Rotary Joints

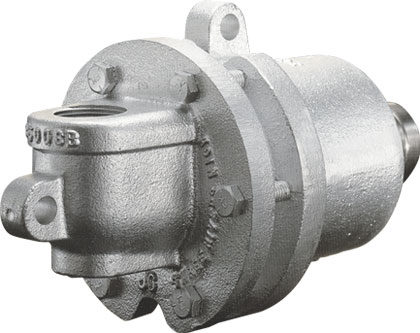

Kadant Johnson Type S Rotary Joint is designed for steam service and available for stationary syphon pipe applications.

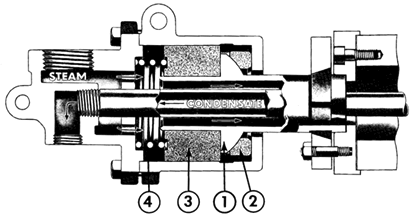

This self-supporting configuration is extremely simple, that is; Type S Rotary Joint has only four internal parts. This means that it has a few parts that cause failure. The uncomplicated design of the Type S joint reduces maintenance and repairs, so it makes easy to maintain good performance.
Type: S-B (Dual Flow)
Specifications
 |
Fluid | Max. Pressure | Max. Temperature | Max. Speed |
|---|---|---|---|---|
| Steam | 2.0MPa | 230°C | 100rpm |

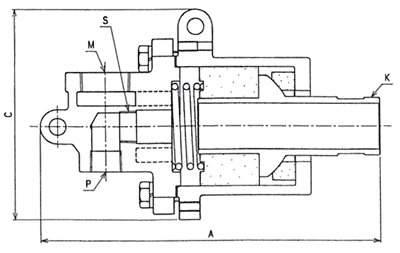

Unit:mm
| Type | Size(K) | M | P | S | A | C |
|---|---|---|---|---|---|---|
| 3300S-B(Q) | 1" | 3/4" | 1/2" | 1/4" - 3/8" | 198.4 | 115.8 |
| 3500S-B(Q) | 1 1/2" | 1 1/4" | 3/4" | 1/2" - 3/4" | 281.0 | 173.0 |
| 3550S-B(Q) | 2" | 1 1/2" | 3/4" | 1/2" - 3/4" | 300.0 | 187.5 |
*Dimensions are subject to change without any advanced notice.
