LJ-PT™ Rotary Joints

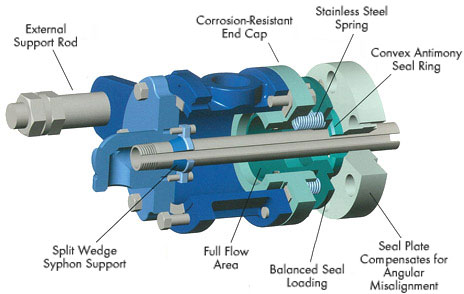

The LJ-PT rotary joint is designed for steam service and is commonly used to upgrade LJ rotary joint installations. The LJ-PT uses a balanced seal impregnated with antimony to provide longer operating life and compensate angular misalignment. The PT design provides reduced seal loading and increased seal life at higher speeds. The full-flow design reduces pressure-drop through the steam joint and no special tools are required for installation. The LJ-PT is rated up to 450° F (232° C), 225 psig (15 bar), and 400 RPM.
Features
- Balanced seal design with AI technology
- External rod-supported, locked in place
- Seal wear indicator
- Full-flow design
- Flexibility in mounting
- Retrofit type LJ Joints
Benefits
- Minimized seal loading and seal wear
- Increased reliability at higher speeds
- On-machine measurement of seal wear
- Reduced pressure drop through joint
- No special installation tools required
- No piping modifications, easy upgrade
Specifications
| Max. Pressure | Max. Temperature | Max. Speed |
|---|---|---|
| 1.5MPa | 232°C | 400rpm |
Unit:mm
| Type | Size | M | P | S | A | B | C | D | E | G | H | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2500LJA-PT | 1 - 1/2" | 1 - 1/4" | 3/4" | 3/4" | 48 | 70 | 155 | 137 | 32 | 116 | 243 | 280 |
*Dimensions are subject to change without any advanced notice.
