ELS™ Rotary Joints (US Patent No. 5,226,677)

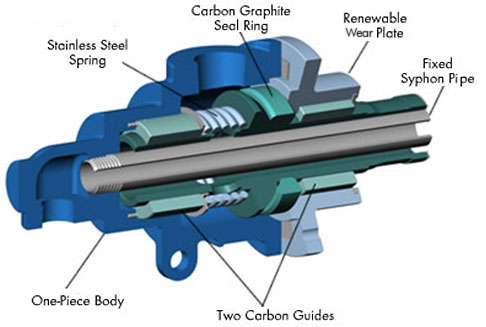

The ELS (Extended Life Series) rotary joint is a self-supported joint that has been specifically designed to solve accelerated wear problems that occur with conventional self-supported rotary joints – particularly those in high vibration applications. The double-guide design provides internal support for the joint and maintains alignment even when the roll or cylinder is not concentric. The ELS is available in single-flow or with stationary syphon dual-flow configurations for steam service. Sizes range from 1.25” up to 10” and the joint is rated up to 650° F (343° C), 310 psig (20 bar) and 200 RPM.
Features
- Designed for steam service
- Two internal support guides
- Renewable wear plate
- Maximum carbon guide separation
Benefits
- Application specific performance
- Increased life and reliability
- Lower maintenance and repair cost
- Improved joint and syphon support
Specifications
| Max. Pressure | Max. Temperature | Max. Speed | Fluid |
| 1.7MPa | 340°C | 200rpm | Steam/Water/Hot Oil |
Type: ELS-AR(Q),BR(Q)
Unit:mm
| Type | Size | M | P | S | C | D | F | G | H | J | O |
|---|
| 3400ELS-AR(Q) | 1 1/4" | 1 1/4" | - | - | 140 | 148 | 87 | 116 | 248 | 289 | 14 |
|---|
| 3400ELS-BR(Q) | 1 1/4" | 1 1/4" | 1/2" | 3/8", 1/2" | 140 | 148 | 87 | 116 | 248 | 289 | 14 |
|---|
| 3500ELS-AR(Q) | 1 1/2" | 1 1/4", 1 1/2" | - | - | 152 | 155 | 93 | 130 | 262 | 313 | 14 |
|---|
| 3500ELS-BR(Q) | 1 1/2" | 1 1/4", 1 1/2" | 3/4" | 1/2" | 152 | 155 | 93 | 130 | 262 | 313 | 14 |
|---|
| 3550ELS-AR(Q) | 2" | 1 1/2", 2" | - | - | 167 | 181 | 111 | 140 | 298 | 347 | 14 |
|---|
| 3550ELS-BR(Q) | 2" | 1 1/2", 2" | 3/4", 1" | 1/2", 3/4" | 167 | 181 | 111 | 140 | 298 | 347 | 14 |
|---|
*Dimensions are subject to change without any advanced notice.
Type: ELST Specifications
 |
Fluid | Usual Pressure | Max. Pressure | Max. Temperature | Max. Speed |
|---|
| Steam/Water | 1.1MPa | 2.0MPa | 288°C | 200rpm |
| Hot Oil | 1.1MPa | 1.1MPa | 343°C | 200rpm |
Unit:mm
| Size | M | A | B | C | D | F | J | N | O |
|---|
| 2 1/2" | 2 1/2" | 59 | 83 | 184 | 191 | 108 | 346 | 92 | 18 |
| 3" | 2" - 2 1/2" | 74 | 99 | 200 | 210 | 121 | 376 | 103 | 22 |
| 3 1/2" | 3" | 86 | 111 | 235 | 262 | 159 | 473 | 119 | 22 |
| 4" | 3" | 99 | 211 | 279 | 303 | 179 | 514 | 140 | 27 |
| 5" | 4" | 121 | 264 | 349 | 399 | 232 | 638 | 165 | 33 |
| 6 1/2" | 8" | 165 | 267 | 381 | 395 | 208 | 626 | 202 | 33 |
*Dimensions are subject to change without any advanced notice.
Type: ELSJ Specifications
 |
Fluid | Max. Pressure | Max. Temperature | Max. Speed |
|---|
| Steam/Water | 1.0MPa | 260°C | 15rpm |
| Hot Oil | 1.0MPa | 260°C | 15rpm |
Unit:mm
| Size(Q) | M | P | S | A | B | C | D | E | F | G | H | J |
|---|
| 6 1/2" | 8" | 4" | 3" | 165 | 267 | 381 | 395 | 203 | 208 | 518 | 667 | 1,040 |
| 10" | 8" | 6" | 4" | 248 | 368 | 559 | 540 | 203 | 270 | 595 | 908 | 1,275 |
*Dimensions are subject to change without any advanced notice.
ELSN™ Rotary Joints (US Patent No. 5,226,677)

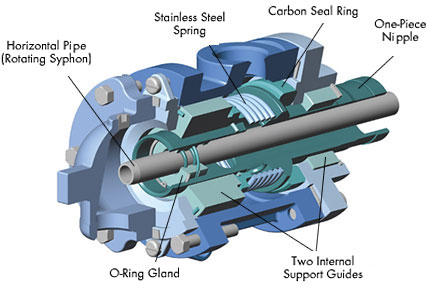

The ELSN rotary joint is a self-supported rotary joint designed for use with steam and hot oil service and rotating syphon pipes. The double-guide design provides internal support for the joint and maintains alignment even when the roll or cylinder is not concentric. The ELSN is available in sizes ranging from 2” to 10” and is rated up to 650° F(343° C), 310 psig (20 bar) and 200 RPM.
Features
- Designed for oil, water, and steam
- Two internal support guides
- Standard O-ring or preformed packing
- Longer O-ring gland
- Flexibility in mounting
- Single nipple design for all syphon sizes
Benefits
- Application flexibility, simplified inventory
- Increased reliability and performance
- Reduced handling time, easy to maintain
- Upgrade to the ELSN without entering dryer
- No special installation tools required
- Reduced inventory of nipples
Type: ELS-NAR(Q) Specifications
| Max. Pressure | Max. Temperature | Max. Speed | Fluid |
| 1.7MPa | 340°C | 200rpm | Steam/Water/Hot Oil |
Unit:mm
| Type | Size | M | P | S | C | D | E | F | G | H | J | O |
|---|
| 2550ELS-NAR(Q) | 2" | 1 1/2" | 3/4" - 1 1/4" | 1/2" - 1" | 171 | 162 | 54 | 87 | 160 | 305 | 378 | 18 |
|---|
| 2600ELS-NAR(Q) | 2 1/2" | 2", 2 1/2" | 1" - 1 1/4" | 3/4" - 1 1/4" | 184 | 191 | 57 | 108 | 178 | 341 | 400 | 22 |
|---|
| 2700ELS-NAR(Q) | 3" | 2", 2 1/2" | 1" - 1 1/2" | 3/4" - 1 1/2" | 200 | 210 | 60 | 121 | 198 | 375 | 445 | 27 |
|---|
| 2750ELS-NAR(Q) | 3 1/2" | 3" | 1 1/4", 1 1/2" | 1" - 1 1/2" | 235 | 262 | 79 | 159 | 243 | 468 | 613 | 28 |
|---|
*Dimensions are subject to change without any advanced notice.
Type: ELSN (4" - 5") Specifications
 |
Fluid | Max. Pressure | Max. Temperature | Max. Speed |
|---|
| Steam/Water | 2.0MPa | 260°C | 15rpm |
| Hot Oil | 1.0MPa | 343°C | 15rpm |
Unit:mm
| Size | M | P | S | A | B | C | D | E | F | G | H | J |
|---|
| 4" | 3" | 2 1/2" | 1 1/2" - 2 1/2" | 99 | 216 | 279 | 305 | 203 | 179 | 289 | 508 | 689 |
| 5" | 4" | 3" | 3" | 121 | 264 | 349 | 399 | 254 | 232 | 353 | 633 | 856 |
*Dimensions are subject to change without any advanced notice.
Type: ELSN (6 1/2" - 12") Specifications
 |
Fluid | Max. Pressure | Max. Temperature | Max. Speed |
|---|
| Steam/Water | 2.0MPa | 260°C | 15rpm |
| Hot Oil | 1.0MPa | 343°C | 15rpm |
Unit:mm
| Size | M | P | S | A | B | C | D | E | F | G | H | J |
|---|
| 6 1/2" | 8" | 4" | 3" - 4" | 165 | 267 | 381 | 395 | 165 | 208 | 480 | 640 | 989 |
| 8" | 8" | 6" | 5" | 222 | 337 | 486 | 457 | 254 | 220 | 557 | 690 | 1,173 |
| 10" | 8" | 6" | 5" | 248 | 368 | 559 | 540 | 203 | 270 | 595 | 843 | 1,275 |
| 12" | 10" | 8" | 7" | 292 | 389 | 605 | 607 | 267 | 340 | 645 | 922 | 1,443 |
*Dimensions are subject to change without any advanced notice.
